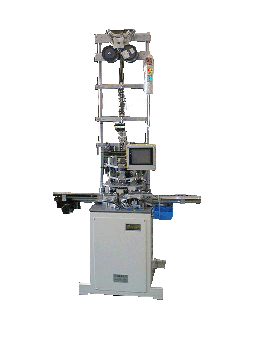

MODEL AL-SP auto terminal insert machine

This model is a machine that automatically inserts various kinds of terminal pin into a epoxy- molded core or bobbin of CD-ROM, Videotape recorder, solenoid etc..

<FEATURES>

(1) Small error in the inserted depth due to the slipping, improved by new designed mechanism of inserting a pin cut in a determined length.

(2) Easy maintenance is realized by the separation of crimping, cutting, carrying and inserting blocks.

(3)Easy construction of an automation line is realized by linearization of supply and removement.

<SPECIFICATIONS>
Capability of inserting	30〜50/min
Wire sizes	10mm2≧are
Control	sequencer
Power	AC 200V 3P 750W
Air supply	5kg/cm2
Dimensions	W 700 x D 600 x H 2,300.
Weight	approx. 300kg

The above specifications are subject to chages in our improvements without prior notice.
